Bao Tin Steel is the importer and distributor of the product Elbows 45 degrees, 45 degree thread shrinkage – this is a high-end lace accessory imported from Thailand, brand SIAM Fittings.
SIAM Fittings is a leading large threaded accessories manufacturing company in Thailand, SIAM Fittings products have full international certifications such as FM Approved, UL Certificate, ISO 9001: 2008, PSB Certificate, IAPMO…
SIAM Fittings manufactures two lines of fittings with Class 150 lbs and Class 300 lbs working pressures, including black and galvanized.

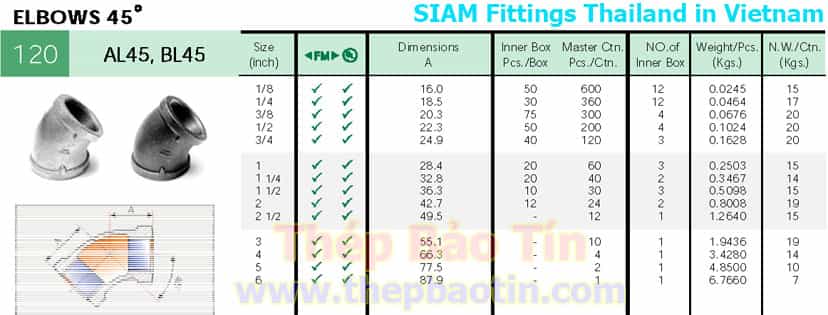

The following are some product specifications Elbows 45 degrees, 45 degree lace stretch
STANDARD SPECIFICATIONS MALLEABLE IRON PIPE FITTINGS
| American 150lbs/300lbs | British 150lbs | Din 150lbs | |
Material – Tensile Strength – Elongation Dimension – Fitting Dimension – Union Dimension 1. Union Brass Seat 2. Union Iron to Iron – Plug & Bushing Dimension Threads Zinc Coating Working Pressure | ASTM A197/A197M Min. 40,000 psi. (28.4 Kgf/mm²) Min. 5%
ASME B16.3
ASME B16.39 N/A ASME B16.14 ASME B 1.20.1 ASTM A153/A153M 150psi – 350 °F/ 300psi – 550 °F | Equivalent to EN1562 EN-GJMB-300-6
ASME B16.3
ASME B16.39
ASME B16.14 ISO 7-1 (Rc, R) Sec 5.3 BS 143 & 1256 150psi – 350 °F | Equivalent to EN1562 EN-GJMB-300-6
ASME B16.3
ASME B16.39 EN 10242 ASME B16.14 ISO 7-1 (Rp, R) Sec 5.2 En10242 150psi – 350 °F |
All products are strictly tested before shipment.
You can download the SIAM Fittings Catalog here: Catalogue SIAM Fittings (Thailand)
Please download the price list of Thai lace accessories from SIAM Fittings here: Price list of galvanized thread fittings SIAM Fittings (Thailand)
